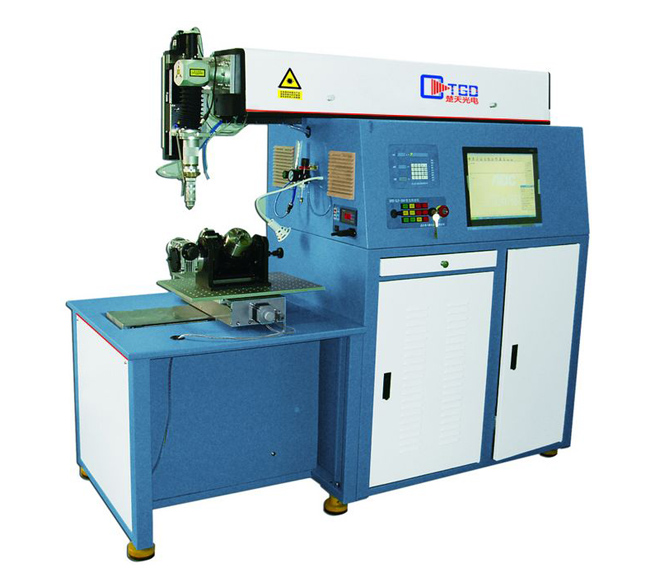

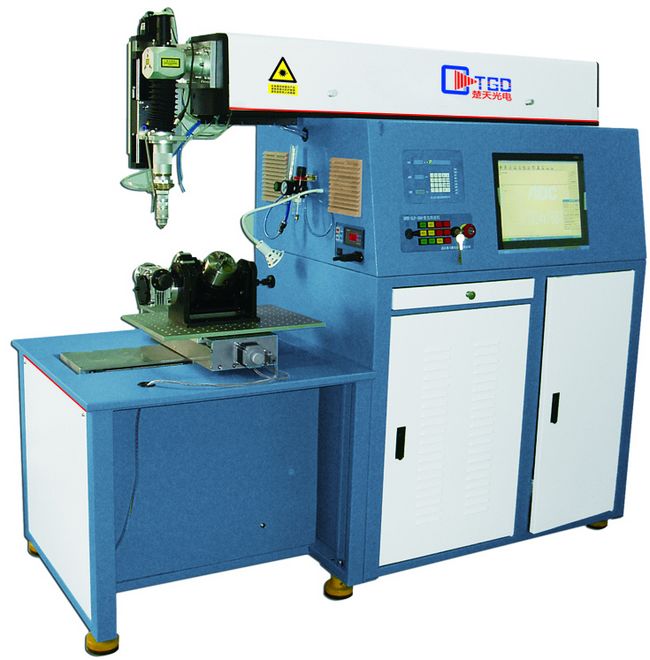

CTGD - YWS - 300/400/500

While inheriting the characteristics of FW series welding machines, such as high conversion efficiency, stable energy and good beam mode, this machine further improves the overall performance of the equipment, enhances the malleability of the operation of the equipment, and has a wide range of application and convenient operation. Integration, the whole machine beautiful atmosphere, compact and reasonable structure.

Widely used in aviation, machinery, electronics, communications, power, chemical, automotive manufacturing and other industries, as well as colleges and research institutes of scientific research projects, engineering training equipment.

Welding of auto parts (hydraulic tappet, gasoline filter, automobile exhaust sensor, solenoid valve, start motor stator welding.

Lithium ion battery seal welding (mobile phone battery, power battery)

Metallurgical industry (welding of silicon steel plate)

Metallurgical industry (welding of silicon steel plate)

Application military industry sensor, engine blade welding

Precision spot welding and sealing welding of electronic components (relay)

Electrical industry (welding of silicon steel sheet, rotor of air conditioner motor, leakage protector)

Laser wavelength: 1064nm

Rated laser output power: 300w/400w/500w

Beam divergence Angle: ≤6mrad

Energy instability: ≤±2.5%

Laser pulse width: 0.3-20ms

Laser pulse frequency: 0.1-150hz

Maximum laser pulse energy: 80J/100J/110J

Spot diameter: ≥0.3mm

Continuous working time of laser: 24H

Table CNC system: industrial PC or CNC quaternion

Table stroke: 300*300*150mm(optional)

Power demand: 380V/ three-phase five-wire /50HZ/40A

Power consumption of the host: 12KW/14KW/16KW

Cooling mode: internal circulating water cooling, refrigeration unit (optional)
